Overview
By changing the contact position between the brush and the polished surface of the columnar winding, the ratio of the turns of the primary and secondary windings can be changed to achieve the purpose of voltage regulation. The column type electric voltage regulator is a large contact type electric voltage regulator, which is the replacement product of induction type voltage regulator. The appearance, weight, volume, efficiency, waveform, operation, installation and maintenance are better than the induction voltage regulator with the same power. It is suitable for industrial and mining electric power, hospital, national defense, scientific research and other departments as continuously adjustable test power supply.
Product specifications and technical parameters

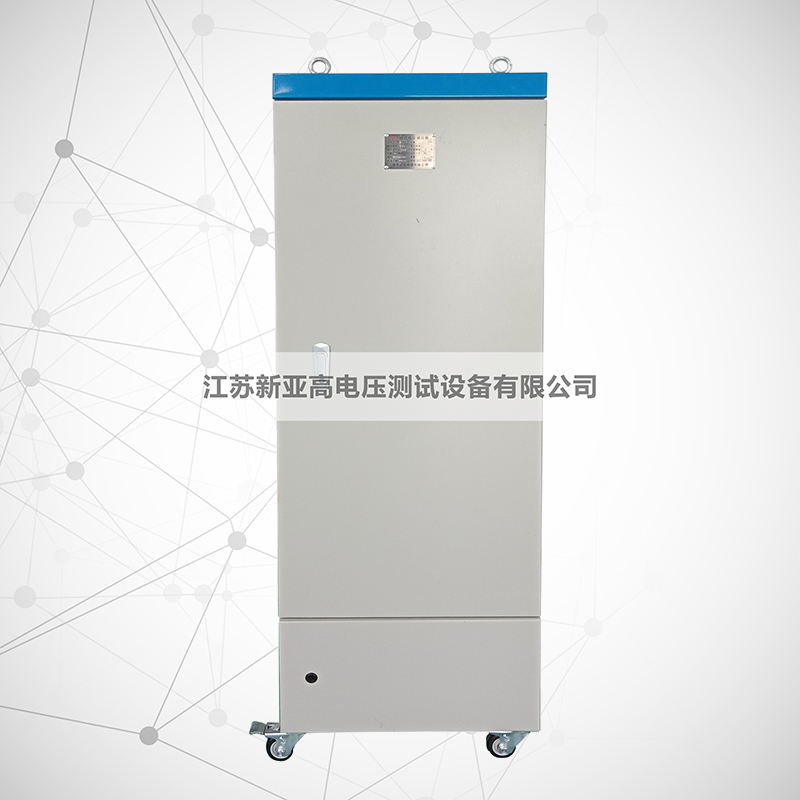

Model: TEDGZ-50
Rated capacity: 50kVA
Rated voltage: input: 0.38kV
Output: 0-0.42kV
Rated current: input: 131.6A
Output: 119A
Phase number: single phase
Frequency: 50 Hz
Waveform distortion rate: ≤ 5%
