Overview
JZF correction pulse generator is a small battery-powered partial discharge corrector. It has the characteristics of small size, light weight, easy to carry, convenient synchronization, etc. It is suitable as a calibration pulse generator for a large number of field tests and factory product tests. It can inject a correction square wave pulse with a frequency of about 1.2kHz into the two ends of the sample with different discharge amounts.

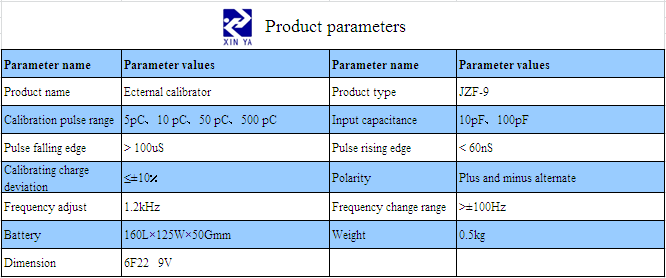

Main Specifications
·Output charge level: 5pC, 10pC, 50pC, 500pC;
·Polarity: Alternate positive and negative;
·Repetition frequency: 1.2kHz;
·Frequency range:) ±100Hz;
·Pulse rising edge time: <60nS;
·Pulse falling edge time:) 100uS;
·Injection capacitance: 10pF, 100pF;
·Correction charge error: Eqs±10%;
·Size: 160mm (length), 125mm (width), 50mm (height);
·Weight: 0.5kg;
·Battery: 6F22 9V
